Create new label template in KillDisk Industrial

To create new label presets:

1. Open Preferences

Press Tools > Preferences or click F10 shortcut key.

2. Select the Disk label templates tab and press the Create new label template icon

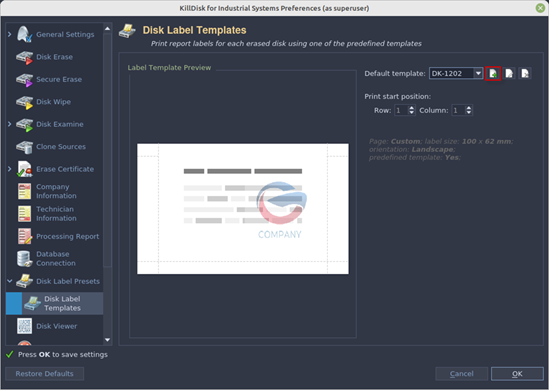

Figure 1: Add new label template

3. Input label parameters for the new template:

Template title
Input title for new template.
Page
Select Custom page size radio-button and input Width and Height of label.
Page margins
Input size of label margins.
Label layout
Select Full page label radio-button.
Size units
Select Millimeter or Inch format.

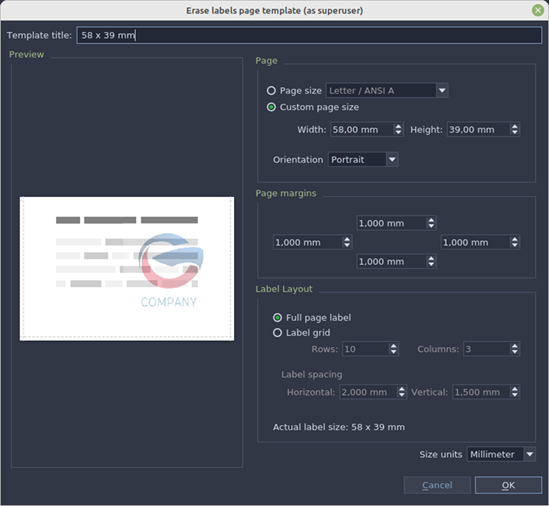

Figure 2: Labels page template

Press the OK button when done.

4. Select the new label template as the default

Open the Default template drop-down menu and select the new label template.

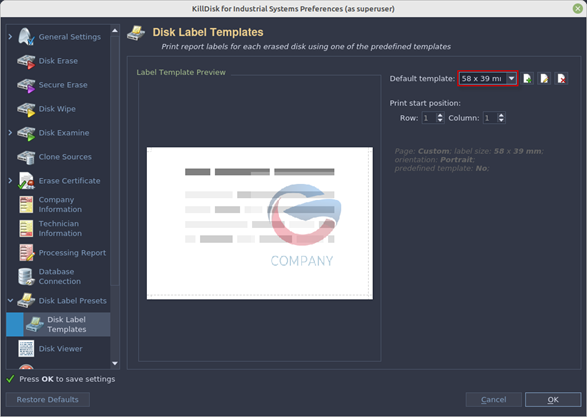

Figure 3: Disk label templates

New label template has been created and is ready for use.

If you want to test your new labels follow this guide.
